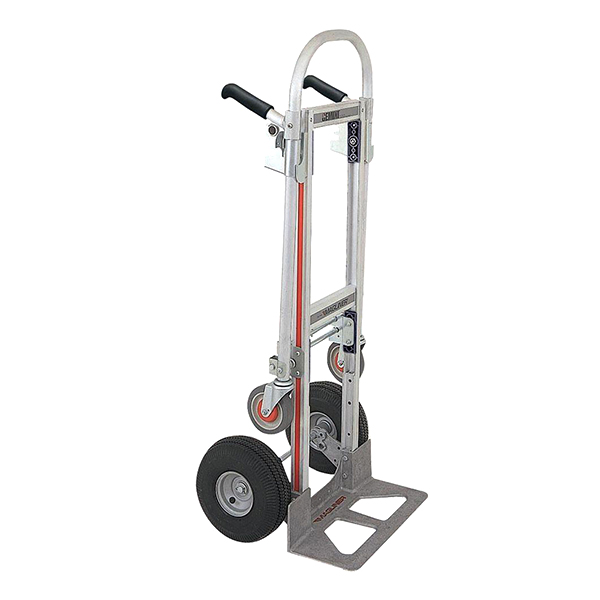

Magline Inc. PN#: GM-16UA4

Specifications:

• Overall width: 21"
• Frame width: 12"
• Deck width: 12"
• Overall length, 4 wheel: 47-1/2"
• Height, as hand truck: 51"
• Height, as platform truck: 40"
• Platform bed length: 38"
• Capacity, as hand truck: 500 lbs.
• Capacity, as platform truck: 1000 lbs.
• Platform height from floor: 10 - 1/2"
• *Standard wheel: 10"
• *Casters (standard swivel): 5" x 1 - 1/4"
• Nose: 18" x 7 - 1/2"

Features:

• Converts in seconds from a 2-wheel hand truck to a 4-wheel platform truck
• Lightweight, high strength aluminum construction
• Balanced to assure easier wheeling and positive load control
• 18" wide x 7-1/2" deep rugged cast aluminum nose plate
• 16-5/8" frame width, 20-1/2" O.A. width
• Modular design means no welds to break, all parts are replaceable for longer product life
